S-Class Designs
The Lenard S-Class range of systems combines unique aesthetics with the highest audio performance possible. All S-Class systems are integrated and 4-way active, achieving optimum ratings of the Lenard Audio Application Standards©, key attributes; intelligibility, spectral energy balance, harmonic detail, bass discernment and directivity control. The musical performance is identical to the Opal class systems, while adjusting for dynamic range and maintaining consistency and seamless integration across all audio applications and platforms. All S-Class systems are multi-applicable across domestic, commercial and professional environments.
The aesthetic design features leverage smart use of modern advancements in materials technology, enabling these systems to be broadly economically accessible for all applications. The cylindrical shape allows these systems to blend into their environments and reflect the beauty of their design and the external surrounds.
The S-Class range of systems is also designed for ease of transport and placement. As fully integrated systems, they are easily connected to source and able to be used with or without pre-amps or external DAC's. The easily accessible crossover controls allow the listener to make level adjustments to the crossover range frequencies to suit their listening preferences, the environment and the application.

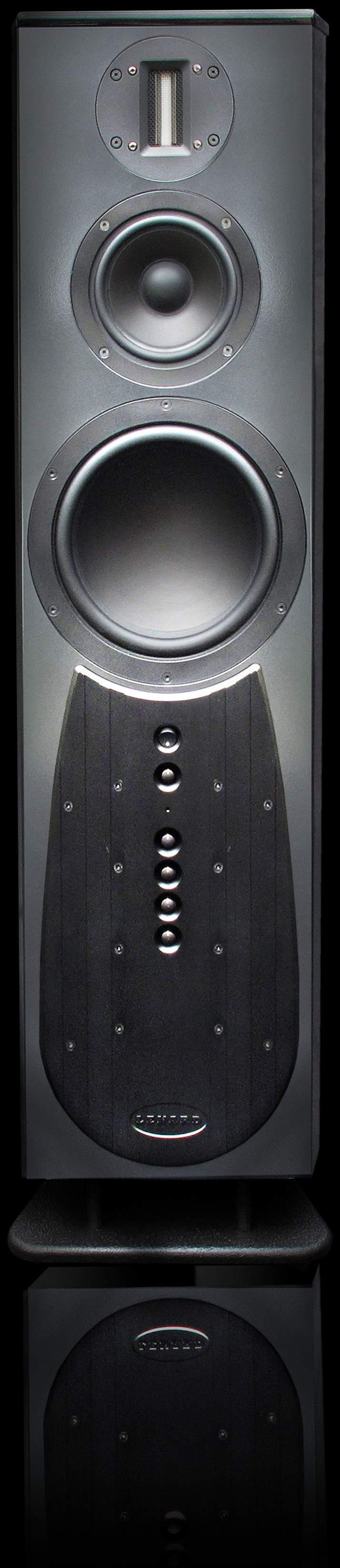

Sonata
Overview
The Sonata is an aesthetically designed, integrated and compact 4-way active sound system that is ideally suited to domestic, home theatre, studio and small commercial applications.
The Sonata is a 3 way system but includes 4 x integrated amplifiers, power supply and active electronic crossover contained behind the dress plate on the front of the cabinet.
Individual level controls on the front dress plate allow for you to easily set each frequency band to suit your environment, music selections and preferences. Direct input connections to the music source enables easy and simple set up and placement.
Specifications
Sonata’s are designed for AB-Class with analogue crossovers or D-Class with DSP crossover programming. The details below are per unit. Systems are provided in stereo pairs.
The crossover points are typically set to:
- Harmonics - 6kHz to 20kHz
- Upper voice/mid - 600Hz to 6kHz
- Lower voice/mid - 100Hz to 600Hz
- Bass and sub-bass - 20Hz to 100Hz
- Electronics
- 4 x 100 Watt amplifiers
- 4-way crossover Linkwitz-Riley 4th order
- Inputs
- RCA x 2 for slaving
- XLR male balanced - XLR female balanced
- Speakers
- Ribbon tweeter for the harmonics
- 5in for the upper voice/mid
- 8in for the lower voice/mid and bass
- Dimensions
- Height 980mm (39in)
- Diameter 272mm (11in)
- Mass 20kg (44lb)
-
- Standard model comes with mirror finish stainless steel surround and black onyx powder coated steel fascia.

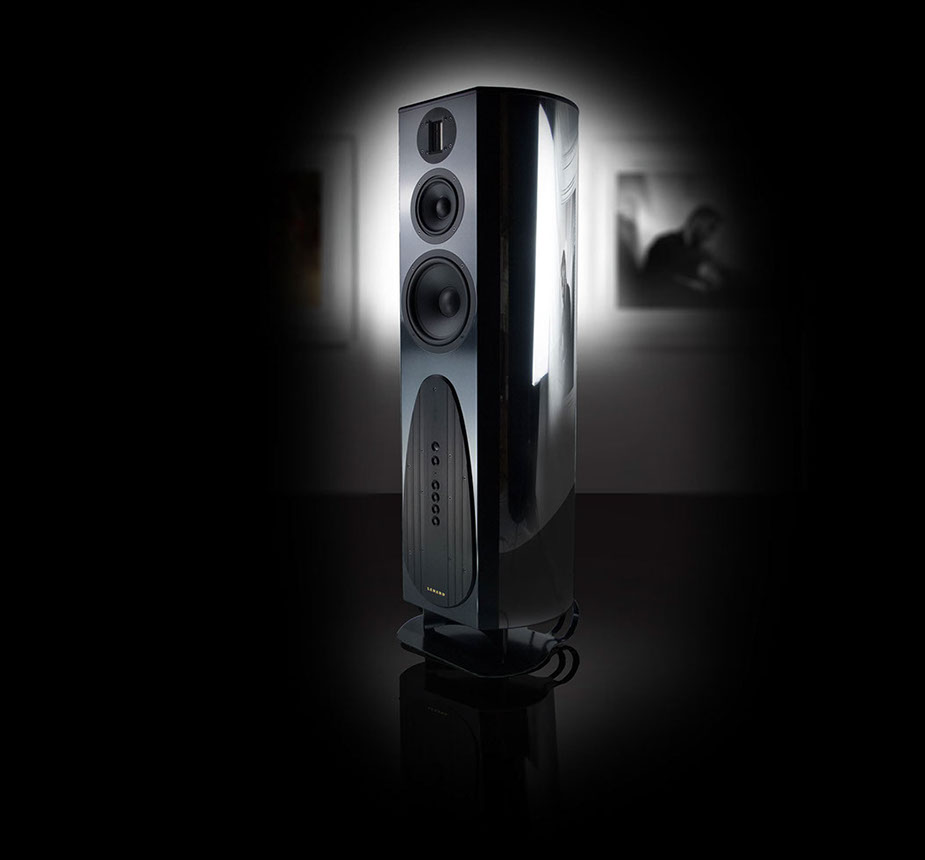

Overview
The Sarabande is an aesthetically designed, integrated, compact and fully 4-way active sound system that is ideally suited to domestic, home theatre, studio, small venue and commercial applications.
The Sarabande includes 4 x integrated amplifiers, power supply and active electronic crossover contained within the cabinets. For the solid-state version, the electronics are contained behind the dress plate on the front of the cabinet.
Individual level controls on the front dress plate allow for you to easily set each frequency band to suit your environment, music selections and preferences. Direct input connections to the music source enables easy and simple set up and placement.
Specifications
Sarabande’s are designed for AB-Class with analogue crossovers or D-Class with DSP crossover programming. The details below are per unit. Systems are provided in stereo pairs.
The crossover points are typically set to:
- Harmonics - 6kHz to 20kHz
- Upper voice/mid - 600Hz to 6kHz
- Lower voice/mid - 100Hz to 600Hz
- Bass and sub-bass - 20Hz to 100Hz
- Electronics
- 4 x 100 Watt amplifiers
- 4-way crossover Linkwitz-Riley 4th order
- Inputs
- RCA x 2 for slaving
- XLR male balanced - XLR female balanced
- Speakers
- Ribbon tweeter for the harmonics
- 5in for the upper voice/mid
- 8in for the lower voice/mid
- 12in x 2 for the bass and sub-bass
- Dimensions
- Height 1170mm (46in)
- Diameter 360mm (14in)
- Mass 37kg (82lb)
-
- Standard model comes with mirror finish stainless steel surround and black onyx powder coated steel fascia.

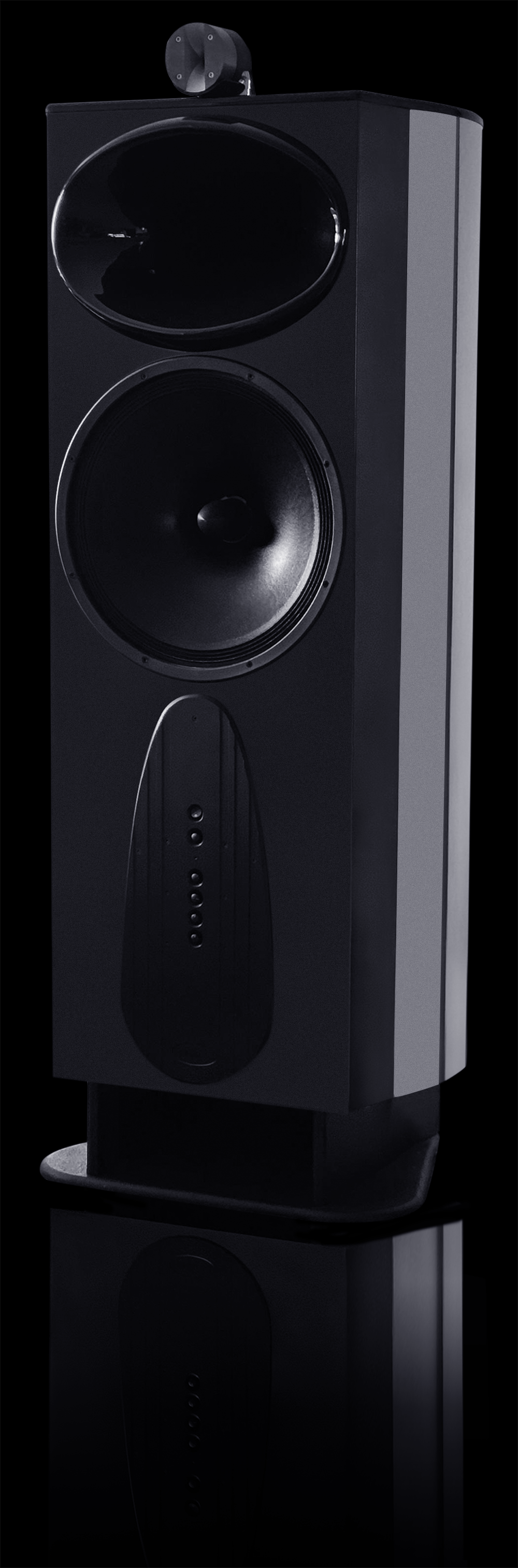

Symphony
Overview
The Symphony is an aesthetically designed, integrated, compact and fully 4-way active sound system that is ideally suited to small venue, professional and commercial applications, but this system also works well in domestic environments, large home theatres or small cinemas.
The Symphony includes 4 x integrated amplifiers, power supply and active electronic crossover contained within the cabinets. The electronics are contained behind the dress plate on the front of the cabinet.
Individual level controls on the front dress plate allow for you to easily set each frequency band to suit your environment, music selections and preferences. Direct input connections to the music source enables easy and simple set up and placement.
The particular features of this system design make it ideal for small to medium commercial and professional applications, especially as a transportable system for small bands and DJ’s.
Specifications
Symphony’s are designed as D-Class with DSP crossover programming. The details below are per unit. Systems are provided in stereo pairs.
The crossover points are typically set to:
- Harmonics - 6kHz to 20kHz
- Upper voice/mid - 600Hz to 6kHz
- Lower voice/mid - 100Hz to 600Hz
- Bass and sub-bass - 20Hz to 100Hz
- Electronics
- 4 x 100 Watt Class-D amplifiers
- 4-way crossover Linkwitz-Riley 4th order
- Inputs
- RCA x 2 for slaving
- XLR male balanced - XLR female balanced
- Speakers
- Compression tweeter for harmonics
- Compression driver and horn for the upper voice/mid
- 15in for the lower voice/mid
- 12in x 2 for the bass and sub-bass
- Dimensions
- Height 1360mm (54in)
- Diameter 520mm (20in)
- Mass 75kg (165lb)
-
- Standard model comes with mirror finish stainless steel surround and black onyx powder coated steel fascia.
Controls (All Designs)
The controls for the system are easily accessible on the front heat sink. Levels are independently controlled for each active speaker.
Calibration of the system allows you to set the levels for the acoustic environment and your enjoyment of the music. This is personal and simple to perform.
